Canon EOS C500 Mark II
5.9K Full Frame sensor in a compact body.
5.9K Full Frame sensor in a compact body.
Please complete the short form to request a product specialist from Canon to contact you.
5.9K Full Frame sensor packed into a newly developed compact and reliable Cinema EOS body, this camera provides new inspiration and great flexibility for all cinematographers.
Update your EOS C500 Mark II now to take advantage of new features such as expanded lens support, digital-teleconverter options, enhanced Clear Scan options, and more.
For more information and to download now, please click the link below.
For shooting fast-action in mountainous terrain, the Canon EOS C500 Mark II was the perfect partner for filmmaker Brett Danton.

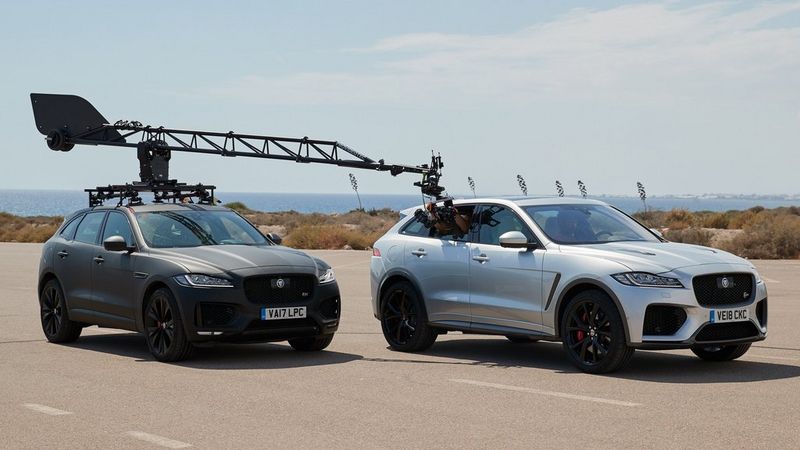

Filmmaker Brett Danton on how the new Canon EOS C500 Mark II was a game-changer on his F-PACE shoot for Jaguar.
Canon’s own developed 5.9K full frame CMOS sensor delivers an immersive cinematic look combined with natural, smooth skin-tones and faithful colour reproduction with Canon colour science.
The sensor also provides 15+ stop latitude with a wide colour space, perfect for High Dynamic Range productions.

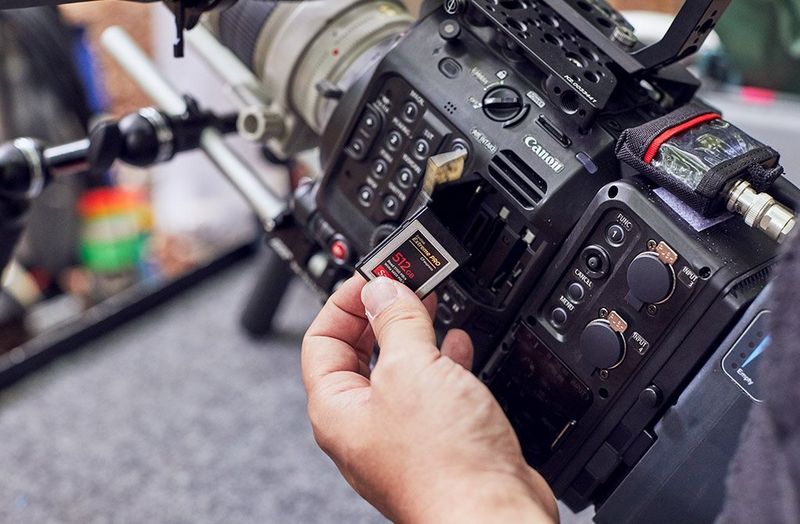

The EOS C500 Mark II features a newly developed DIGIC DV 7 image processor which enables Cinema RAW Light recording internally at 5.9K, as well as supporting recording of Canon’s XF-AVC format in 4K 4:2:2 10-bit. Simultaneous recording of the same file format is possible to the dual CFexpress card slots, with an additional SD card slot for proxy files.
This multi-recording format provides efficiency and fulfils production requirements.
Record Cinema RAW Light internally at up to 2.1Gbps
Record XF-AVC up to 810Mbps
The EOS C500 Mark II uses a high-quality debayering algorithm when over sampling 5.9K for 4K/UHD recording. This suppresses moiré and reduces noise, resulting in a superior quality image.

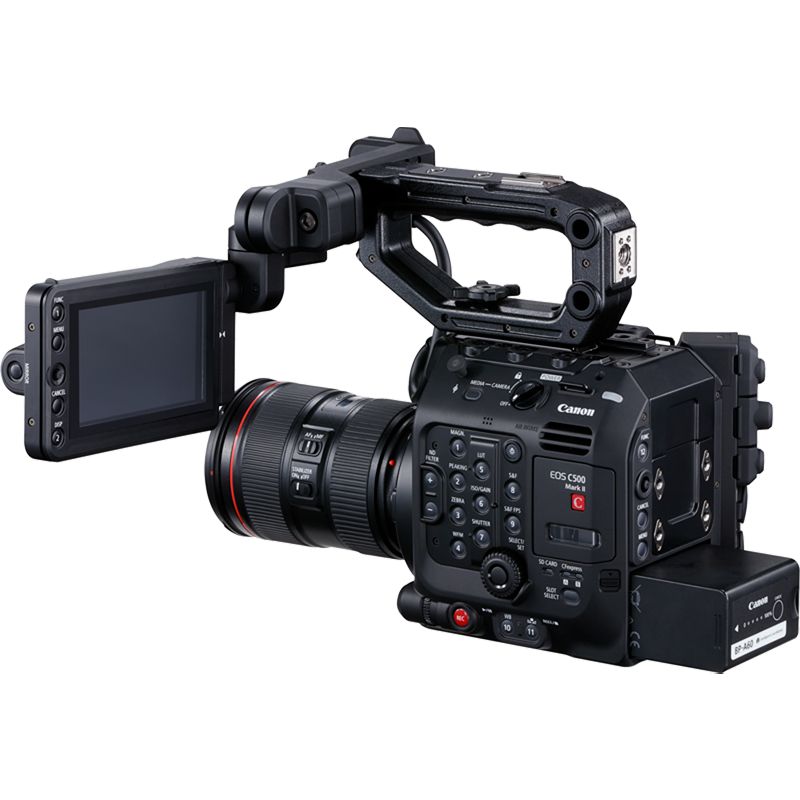

Approx. 1,750g lightweight body enables it to be comfortably rigged with gimbals, hand-held rigs, making it ideal for various shooting conditions.
The EOS C500 Mark II provides support for optional interchangeable lens mounts for different project requirements.

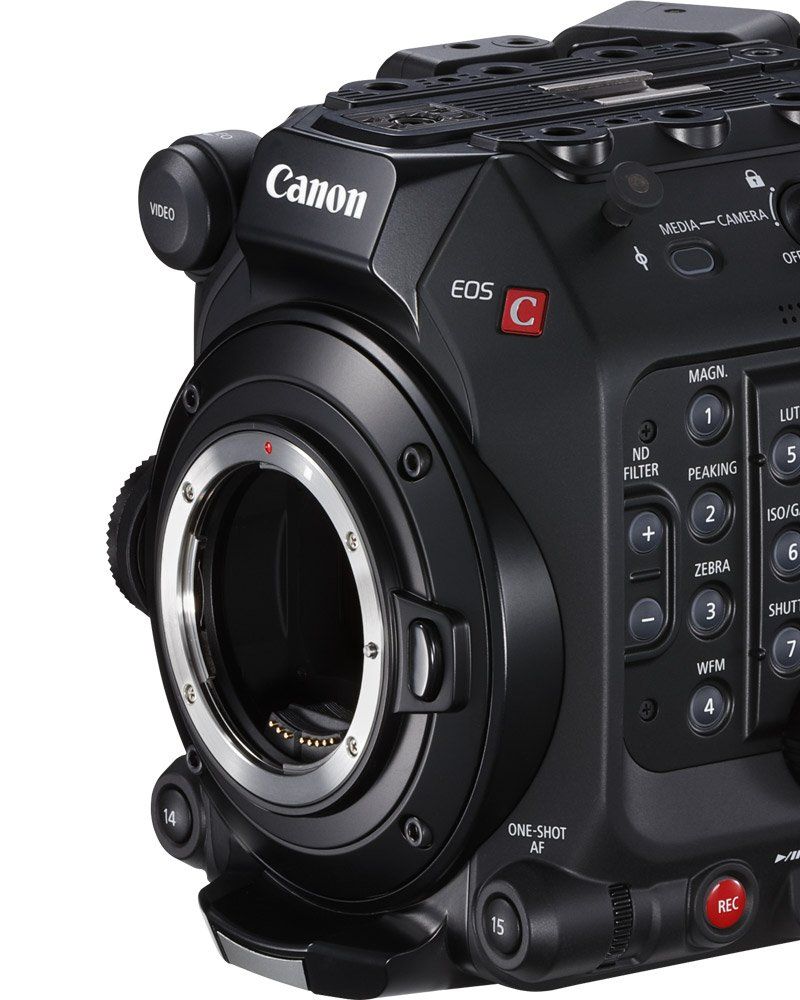

EF lens mount provides perfect compatibility with a huge range of Canon EF lenses including EF Cine Primes, while the optional PL mount supports the Cooke /i system. Additionally, B4 mount adapters are also available (for EF or PL mounts) to use with B4 lenses.
Optional Extension Units offer a flexible modular design and configuration capability to cater for a variety of production requirements.

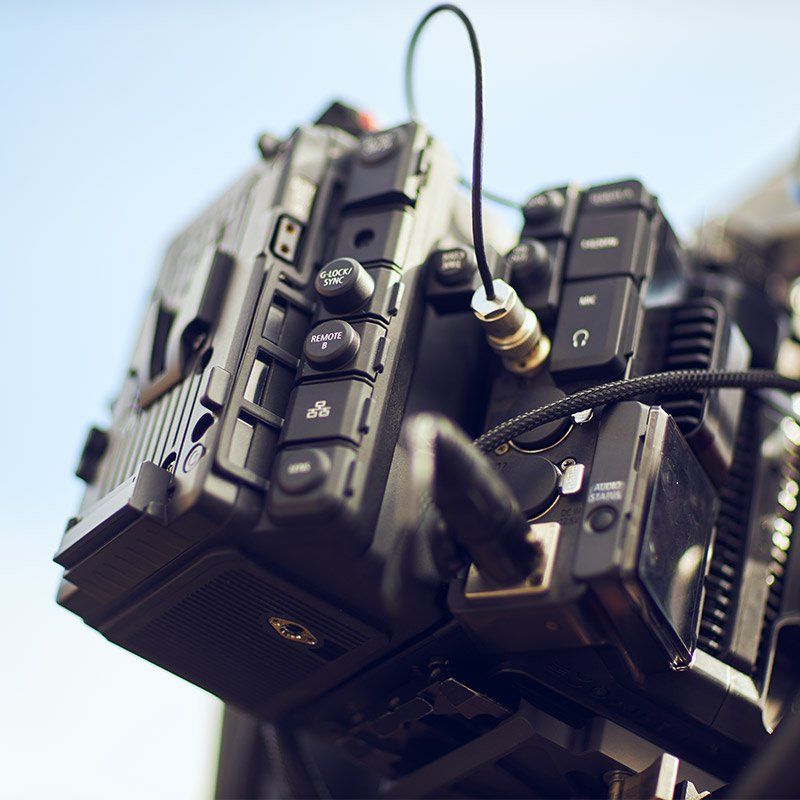

Extension Unit EU-V1 offers additional connectivity such as a Genlock interface, while Extension Unit EU-V2 adds further interfaces, including two more XLR inputs and a V-Lock battery mount for extended recording times. Extension Unit EU-V3 is designed for multi-camera live productions with Tally and Return Signal support. The optional EVF -V50 viewfinder is ideal for hand-held use and it is easily removable for gimbal applications.
The EOS C500 MARK II features Canon’s Dual Pixel CMOS AF Technology which offers high-speed Continuous AF and reliable Face Detection up to 120p. Users also benefit from smooth, intuitive touch focus operation with the new 4.3-inch LCD monitor LM-V2, as well as an improved focus control that recreates a more natural focus pull. To further fine tune AF performance, the EOS C500 MARK II offers the ability to set the AF tracking speed and response.
* with compatible lenses
Dual Pixel CMOS AF phase-difference technology provides an innovative graphical guide that represents front/back focus deviation; the rectangle turns green when the subject is in focus, improving usability and accuracy when manual focus pulling, especially for critical focusing in 4K.
Simply use the touchscreen to select an object in the frame and it will be tracked as it moves within it, enabling effortless subject tracking, taking all the hard work away.
Working together with Canon Face Detection technology, Dual Pixel CMOS AF is excellent at automatically recognising a face, focusing and following it while it moves.
EOS C500 Mark II is the first Cinema EOS camera to incorporate Electronic Image Stabilization (IS) into the camera body, supporting 5-axis camera shake correction. Even when used with lenses with no electronic lens communication, Electronic IS is possible by manually inputting the focal length.
When a lens that supports data transmission is attached, focal length data is automatically received through the digital contacts for shooting with optimized Electronic IS.
Shooting with Electronic IS is possible even when a lens that does not support data transmission is attached by simply manually inputting the focal length. It is also compatible with anamorphic lenses.
Just select focal length during shooting to shoot with an electronic IS effect optimized for the settings.
The EOS C500 Mark II supports high frame rate recordings up to a maximum 50/60 fps at 5.9K. In 2K (crop) mode, settings from 1fps to a maximum 120fps can also be made, increasing creative possibilities. The new Slow & Fast button gives quick access for Slow & Fast settings.
The EOS C500 Mark II features an advanced 12G-SDI interface which has four times the bandwidth compared to 3G-SDI, simplifying 4K workflows by enabling it to output 4K 50/60p over a single cable. Similarly, the HDMI interface can also deliver 4K 50/60p over a single cable.
Monitor and HDMI terminals can operate simultaneously, and the 12G-SDI output features 2K or FHD options when shooting at 4K for additional flexibility.
Equipped with a robust built-in electronically controlled ND filter system, EOS C500 Mark II supports 2/4/6 and an extended 8/10 stops, making it possible to create an image with a shallow depth of field, even in the daytime.
Newly added On-Screen Display (OSD) peripheral displays options that do not overlay information on the screen are available – choose from several options according to your needs.
EOS C500 MARK II supports anamorphic lenses by electronically de-squeezing the image in the viewfinder and on connected monitors for viewing. In addition, 4:3 (4192 x 3140) and 6:5 (3768 x 3140) shooting resolutions are supported.
Users can take advantage of the camera's full 5.9K resolution by using 1.3x squeeze anamorphic lenses. Popular 2x and 1.8x anamorphic lenses are also supported.
In addition to Canon’s in-built Cinema EOS lookup tables, import custom 3D LUTs for both viewing and internal recording, for even more efficient colour pipeline workflows.
A dedicated LUT button gives additional operational flexibility.
The EOS C500 Mark II supports ACES 1.0 of the Academy Color Encoding System. Using Canon supplied IDTs, images captured on the EOS C500 Mark II can be imported directly into the ACES compatible systems.
Additionally, video output from the camera can be monitored by selecting the ACES Proxy.
5.9K Full Frame CMOS sensor
Immersive Full Frame look with faithful colour reproduction
Internal 5.9K Cinema RAW Light recording
Efficient RAW file onto CFexpress
4K 4:2:2 10-bit
Up to 810Mbps internal recording
Dual CFexpress slots
Simultaneous or relay recording
High Dynamic Range support
SMPTE ST 2084 and ITU-R BT.2100 (HLG)
Pioneering Autofocus Technology
Accurate and reliable, with touch screen control
DIGIC DV7 Image Processor
To power the advanced features of the camera
12G-SDI terminal
Deliver 4K signal via single cable
Canon is an authorized licensee of the CFexpress Ver.2.0™ trademark owned by CompactFlash Association, which may be registered in various jurisdictions.
EOS C500 Mark II Body
LCD Monitor LM-V2
LCD Attachment Unit LA-V2
Unit Cable UN-5
Camera Grip GR-V1
Handle Unit
Mic Holder Unit
Battery Pack BP-A60
Battery Charger CG-A20
Compact Power Adapter CA-CP200B
AC Power Cable
Shoulder Strap SS-1200
Extension System Attachment Bracket
Thumb Rest
Body Cap
Allen wrenches and bolts
This unit adds Genlock/SYNC, REMOTE B (RS-422) and Ethernet support, attaching to the camera’s extension terminal.
This unit adds Genlock/SYNC, REMOTE B (RS-422), Ethernet, 2x XLR terminals, a V-mount battery plate, a 12-pin lens terminal and DC OUT 24V-2A support, attaching to the camera’s extension terminal.
Built for live multi-cam productions, this extension unit adds Return SDI Signal Input, Tally Signal Support, 12-pin Lens Terminal, Remote B (RS-422), and more.
A tiltable 0.46-inch OLED viewfinder with1.77M dots that attaches to the camera’s extension terminal.
A high resolution (1920x1080) OLED electronic viewfinder with a wide colour gamut and multiple controls.
Use with the EVF-V70 when attaching to this camera.
The 50cm UN-5 cable is included with the camera whilst the 100cm UN-10 is an optional extra.
Supports the MIMO 802.11ac standard, using both 5 GHz and 2.4 GHz bands for reliable communication over distances of up to 150m and allows connections to secure SFTP servers.

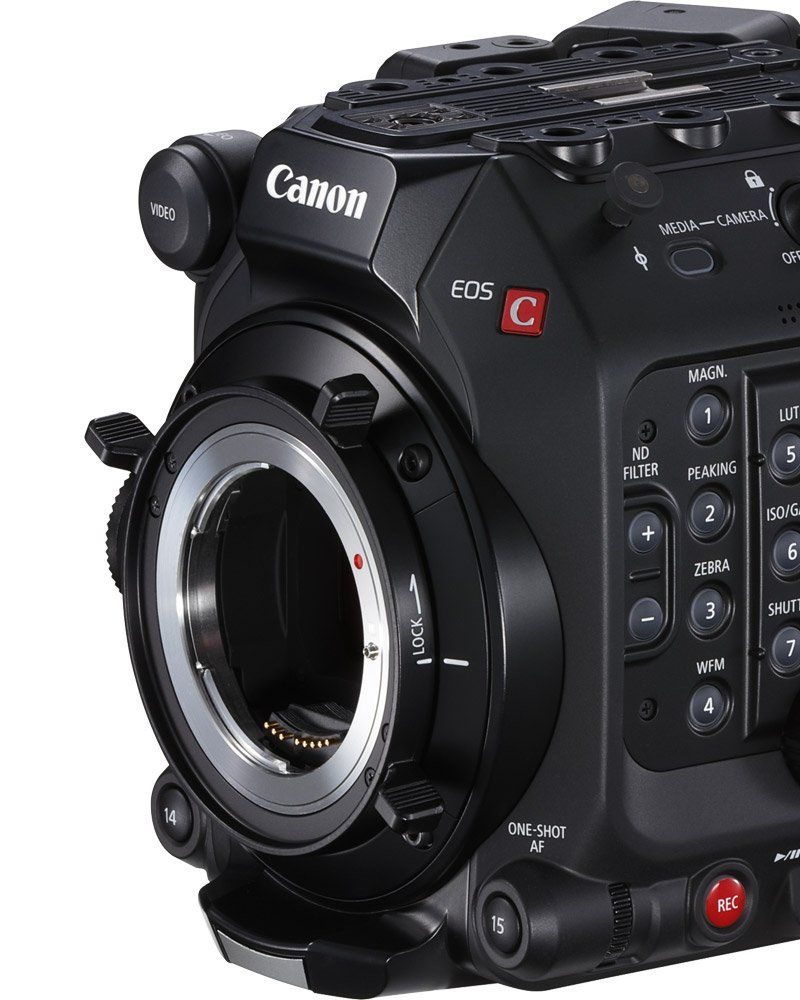

A user changeable lens mount kit that changes the mount to an EF Cinema Lock Mount.
A user changeable lens mount kit that changes the mount to a PL Mount.
Use compatible B4 mount broadcast lenses on EF mount or PL mount camera, allowing the user to capture Full HD footage (in crop mode).
The BP-A30 (3100mAh) and high capacity BP-A60 (6200mAh) are dedicated Li-ion battery packs for compatible Canon cameras.
The CG-A10 is a dual battery charger for BP-A30 and BP-A60 Li-ion batteries.
Shoulder support with split sliding shoulder pads for added comfort and rods.
Can be used with the SU-15 Shoulder Support Unit to offer the operability of a shoulder mount camera with REC, zoom and iris controls, supporting the 12-pin lens connector.
A rod clamp that can be mounted onto the camera/handle, allowing the operator to use a 15mm rod for additional rigging purposes.
The Remote Controller RC-V100 provides extensive wired remote functionality.
The Canon RR-10 (10m) and RR-100 (100m) are compatible with the Remote Controller RC-V100 and the 8-pin remote terminal for enhanced performance short or long range connectivity.
The GP-E2 features an electronic compass and GPS signal receiver to record time, longitude, latitude and elevation directly into the metadata of every shot.
Canon's next generation Full Frame CMOS sensor records 5.9K with over sampling for exceptionally high quality 4K footage.

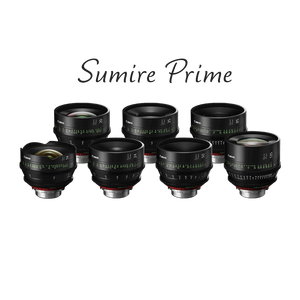

A range of Full-Frame cinema prime lenses with a specially designed ’cinematic look’ and interchangeable PL mount.
