ML-100 EF
EF lens mount option with CoaXPress standard.

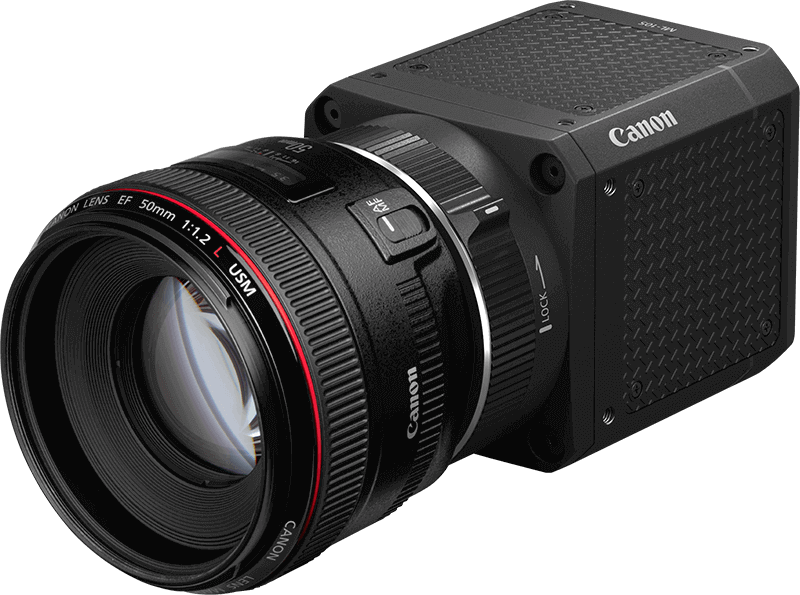

Acquire Full HD footage anywhere, at any time, in any conditions with the ML-105 EF; the ultimate surveillance solution and low light capturing camera.
The ML-105 EF is a modular Full HD video camera, designed for government, defence and security use. Featuring a 35mm Full Frame CMOS sensor with an ISO range of up to 4 million, it truly is a camera that can see in the dark.
The ML-105 EF will capture with up to ISO 4 million in environments with a minimum illumination level of 0.0005 lux.
At 76 mm x 76 mm x 112 mm, the ML-105 EF boasts a compact design and weighs just 775g, making it highly flexible for drone use and other various applications.
Being dust, shock, vibration and water resistant, this camera is built for the most challenging environments and can withstand temperatures from -20°C to 50°C.
With its EF mount, the ML-105 EF can be used with a vast array of EF lenses and is ideal for integration into existing video systems thanks to SDI connectivity.
Capture in Full HD at 1080p and be assured of excellent edge-to-edge image quality thanks to Canon’s 2.07MP 35mm Full Frame CMOS sensor offering a high dynamic range.
Low light shooting
ISO 4,000,000 and can shoot at 0.0005 lux
Compact and lightweight
76 x 76 x 112mm approx. 775 grams approx.
Tough and Rugged body
MIL standard1 equivalent. IP54 equivalent.
EF Lens mount 2
Flexible lens options

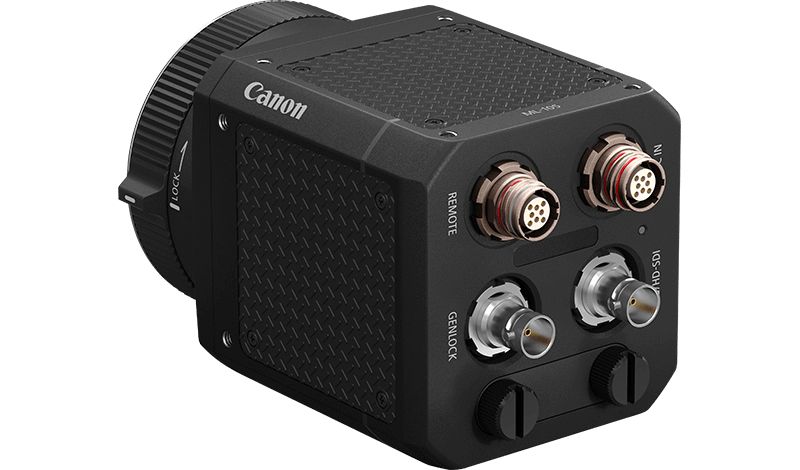

3G/HD-SDI video output 3
Standard video output
Full HD
1080p/720p
1 MIL-STD-810G (501.6 & 502.6: high/low temperature, 514.7: vibration, 516.7: shock), MIL-STD461 (Electrical compatibility test) equivalent.
2 In Addition an M58 mount Model is also available.
3 In Addition an CoaXPress Model is also available.
ML-100 EF
ML-100 M58
ML-105 EF
ML-105 M58
CoaXPress / EF mount model
CoaXPress / M58 mount model
SDI / EF mount model
SDI / M58 mount model
35mm full-frame CMOS sensor
35mm full-frame CMOS sensor
35mm full-frame CMOS sensor
35mm full-frame CMOS sensor
0.0005 lux or lower (with gain 75 dB, f/1.2, shutter speed 1/30 secs., 50 IRE)
0.0005 lux or lower (with gain 75 dB, f/1.2, shutter speed 1/30 secs., 50 IRE)
0.0005 lux or lower (with gain 75 dB, f/1.2, shutter speed 1/30 secs., 50 IRE)
0.0005 lux or lower (with gain 75 dB, f/1.2, shutter speed 1/30 secs., 50 IRE)
2152×1272 (full view) / 1920 x 1080 (center-cropped) / 1280 x 720 (center cropped)
2152×1272 (full view) / 1920 x 1080 (center-cropped) / 1280 x 720 (center cropped)
1920 x 1080 / 1280 x 720
1920 x 1080 / 1280 x 720
EF Cinema Lock Mount
M58 Mount
EF Cinema Lock Mount
M58 Mount
CoaXPress compliant (Bayer RAW 8/10/12/16 bit)
CoaXPress compliant (Bayer RAW 8/10/12/16 bit)
3G/HD-SDI (YCbCr422, 8-bit)
3G/HD-SDI (YCbCr422, 8-bit)
76 x 76 x 112 mm
76 x 76 x 83 mm
76 x 76 x 112 mm
76 x 76 x 83 mm
Approx. 760g
Approx. 540g
Approx. 775g
Approx. 555g
IP54 Equivalent, MIL-STD-810G (High/Low temperature and shock) Equivalent and MIL-STD-461 (Electric compatibility test) Equivalent
IP54 Equivalent, MIL-STD-810G (High/Low temperature and shock) Equivalent and MIL-STD-461 (Electric compatibility test) Equivalent
IP54 Equivalent, MIL-STD-810G (High/Low temperature and shock) Equivalent and MIL-STD-461 (Electric compatibility test) Equivalent
IP54 Equivalent, MIL-STD-810G (High/Low temperature and shock) Equivalent and MIL-STD-461 (Electric compatibility test) Equivalent
Approx. -20°C to 50°C, 5 to 85% relative humidity (no condensation)
Approx. -20°C to 50°C, 5 to 85% relative humidity (no condensation)
Approx. -20°C to 50°C, 5 to 85% relative humidity (no condensation)
Approx. -20°C to 50°C, 5 to 85% relative humidity (no condensation)
ML-105 EF

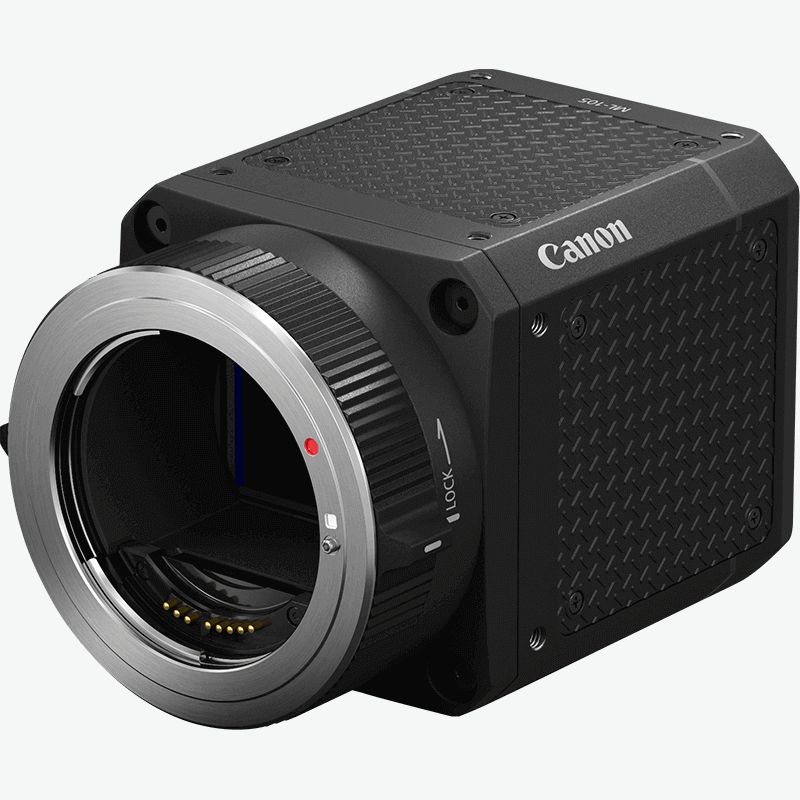

Body Cap
EF lens mount option with CoaXPress standard.
M58 lens mount option with CoaXPress standard.
M58 lens mount option with standard 3G/HD-SDI video output.
